Discharger

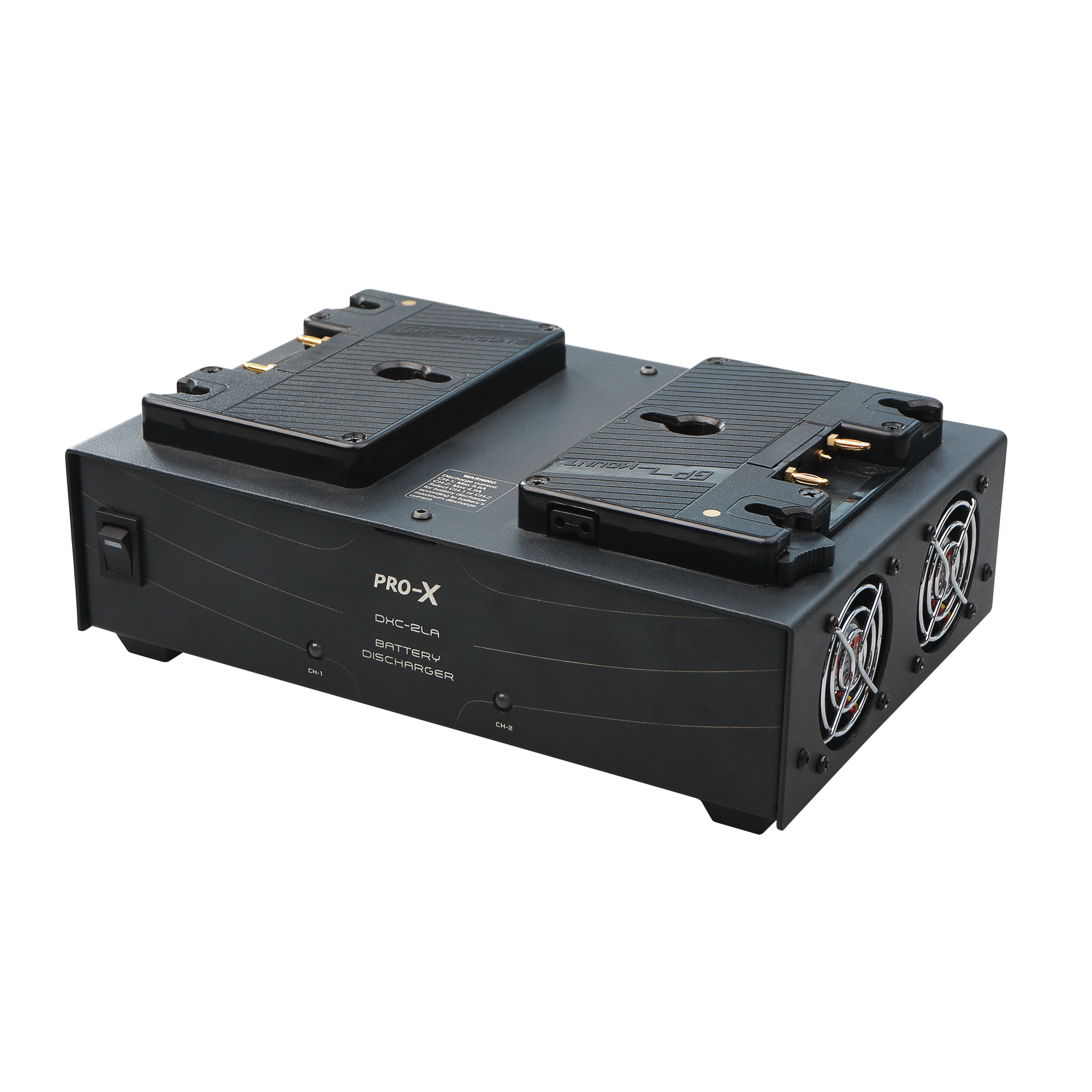

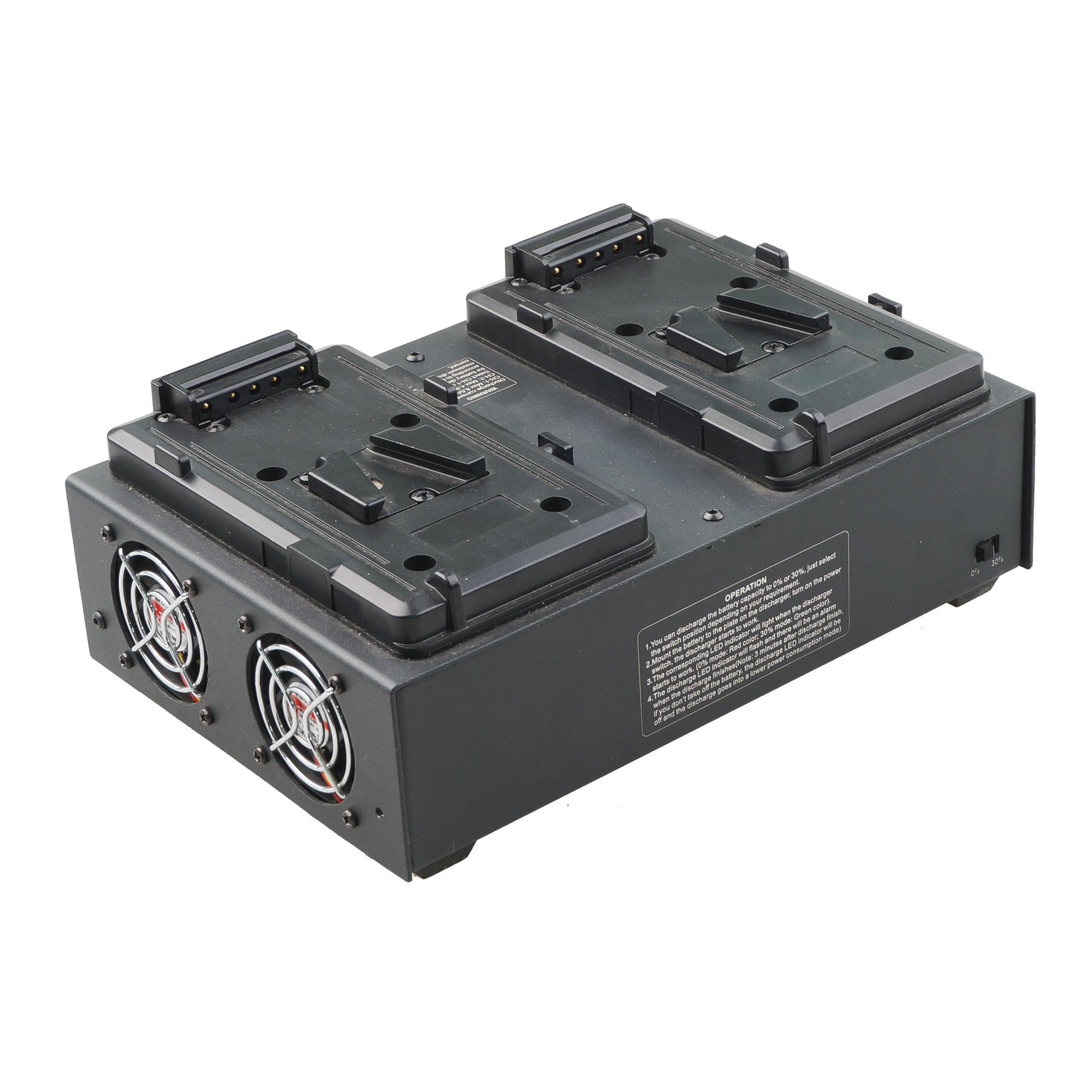

V Type/3-Stud Discharger
DXC-2LS / DXC-2LA
Discharge Positions: 2
Discharge Current: 8.6A MAX.(CH1), 4.9A MAX.(CH2)
| Mount | Model |
Discharge
Positions
|
Current(A) MAX. | Nominal Discharge Voltage(V) | Size(inch) | Weight(lbs) | |
| 30% Mode | 0% Mode | ||||||
| V Type | DXC-2LS | 2 |
8.6(CH1)
4.9(CH2)
| 13.5 | 11 | 9×5.9×2.4 | 1.6 |
| 3-Stud | DXC-2LA | ||||||

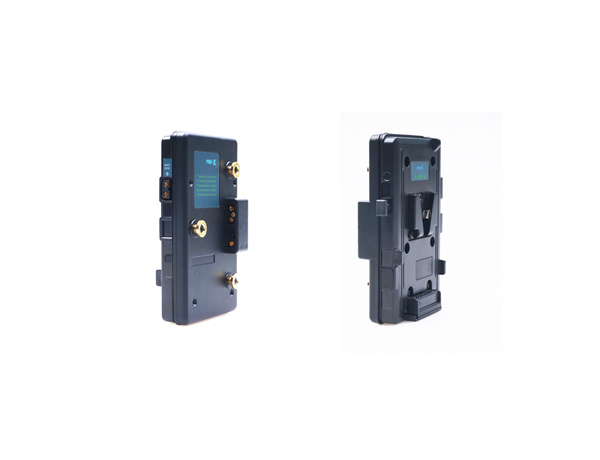

Available Mounts
The discharger are available in both V-Type and 3-Stud type mount, so it will compatible with your pre-existing battery system.
Low-Voltage Protection
Intelligent protection circuit protects your battery away from damage.
Discharge according to real-time capacity for digital battery. Stop discharge at 13.5V (30%)/11V(0%) for non-digital battery.
Simultaneous Discharging
It takes about 35/50 minutes to discharge a 98Wh battery from 100% capacity to 30% / 0%.
