Brick Style
V Type/3-Stud Mount Charger and DC Power Supply
GP-2LSJ / GP-2LAJ
TC-2S / TC-2A
TC-4S / TC-4A
Charge Positions: 2/4
Charge Current: 3.0A Max.
Power Supply:
100W Max.
| Mount | Model | Charge Positions | Input Voltage | Current | Nominal Charge Time (hrs.) |
Power Supply
Output (W)
| Dimension | Weight | ||
| 90Wh Model | 130Wh Model | 190Wh Model | ||||||||
| V Type | GP-2LSJ | 2 | 90-240V AC 50/60Hz |
2.5A(1battery)
1.5A(2batteries)
| 5 | 7 | 10 | 50 |
230×52×155 mm
9.06×2.05×6.10 inches
|
1.27 kg
2.80 lbs
|
| TC-2S | 2 | 100-240V AC 50/60Hz |
3A(1battery)
3A(2batteries)
| 3 1/2 | 5 | 7 1/2 | 90 |
235×118×88 mm
9.24×4.65×3.45 inches
|
1.10 kg
2.43 lbs
| |
| TC-4S | 4 | 100-240V AC 50/60Hz |
3A×4
| 100 |
256×173.5×128.5 mm 10.08×6.83×5.06 in |
2.70 kg
5.95 lbs
| ||||
| 3-Stud | GP-2LAJ | 2 | 90-240V AC 50/60Hz |
2.5A(1battery)
1.5A(2batteries)
| 5 | 7 | 10 | 50 |
230×52×155 mm
9.06×2.05×6.10 inches
|
1.27 kg
2.80 lbs
|
| TC-2A | 2 | 100-240V AC 50/60Hz |
3A(1battery)
3A(2batteries)
| 3 1/2 | 5 | 7 1/2 | 90 |
235×118×88 mm
9.24×4.65×3.45 inches
|
1.10 kg
2.43 lbs
| |
| TC-4A | 4 | 100-240V AC 50/60Hz |
3A×4
| 100 |
256×173.5×128.5 mm 10.08×6.83×5.06 in |
2.70 kg
5.95 lbs
| ||||
Camera Power Supply
PRO-X Brick Style chargers are outfitted with a 50(GP), 70 (XC 2- Channel/100 (XC 4- Channel) watt camera power supply suitable for powering most professional broadcastcameras or other field equipments from an AC main.
Simultaneous Charging
Regardless of model, all brick chargers within PRO-X series have the ability to
charge all batteries at the same time.
Compared to some sequencing chargers, PRO-X Brick Style chargers can be up to
four times faster.

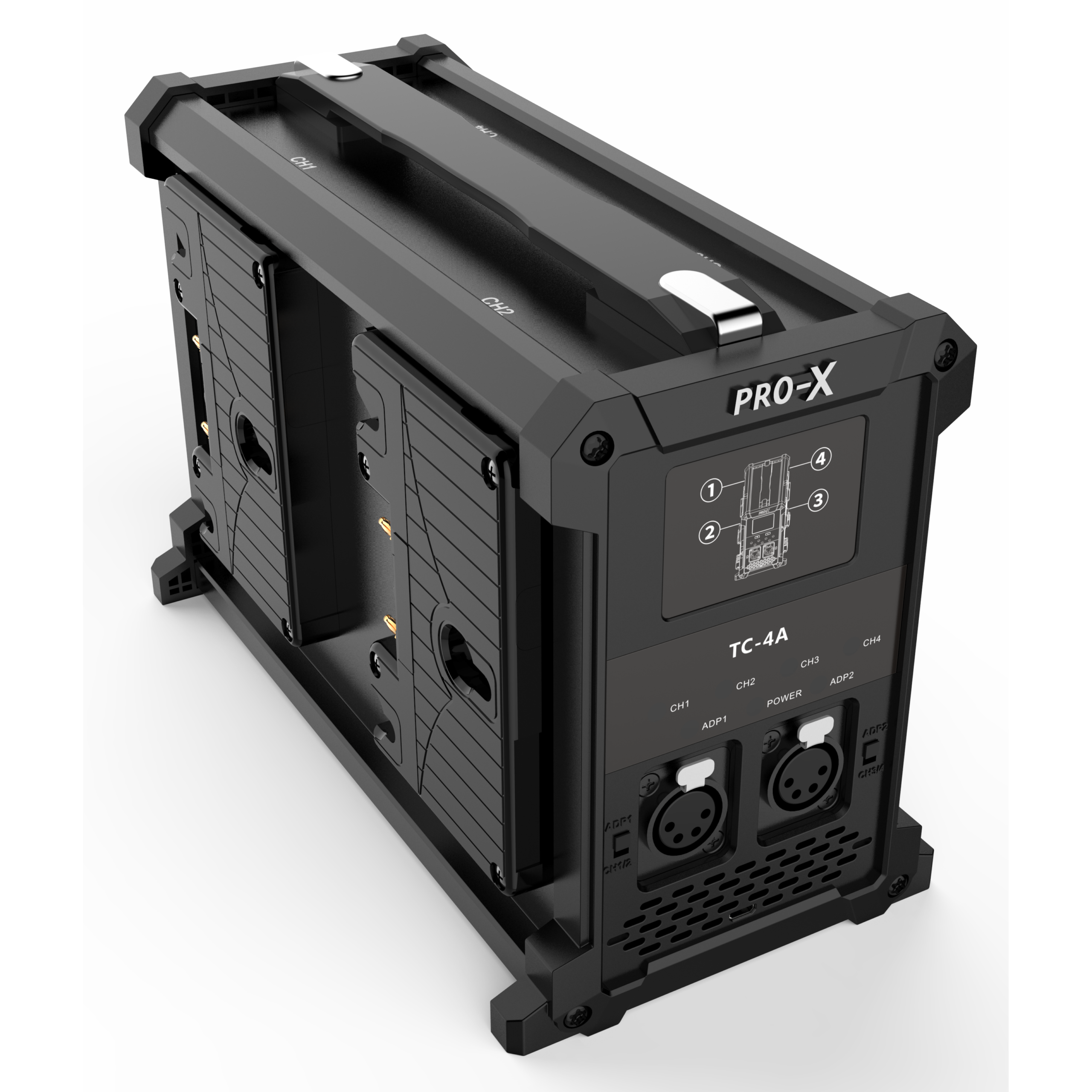

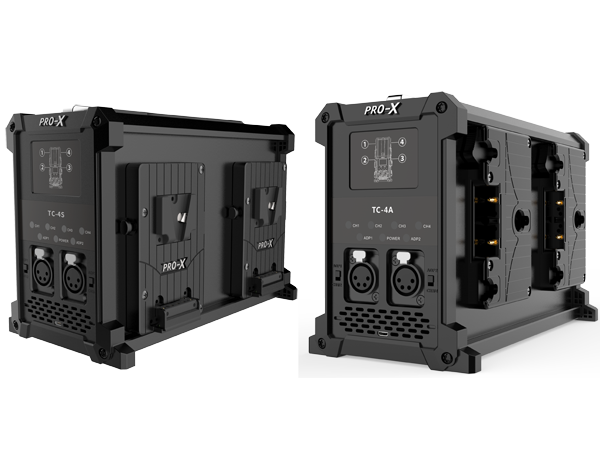

TC-4S / TC-4A
Ideal charger for those that find it essential to cycle many batteries throughout the day.
Utilizing all charge routines, The charging efficiency is among the highest in the industry compared to other chargers.

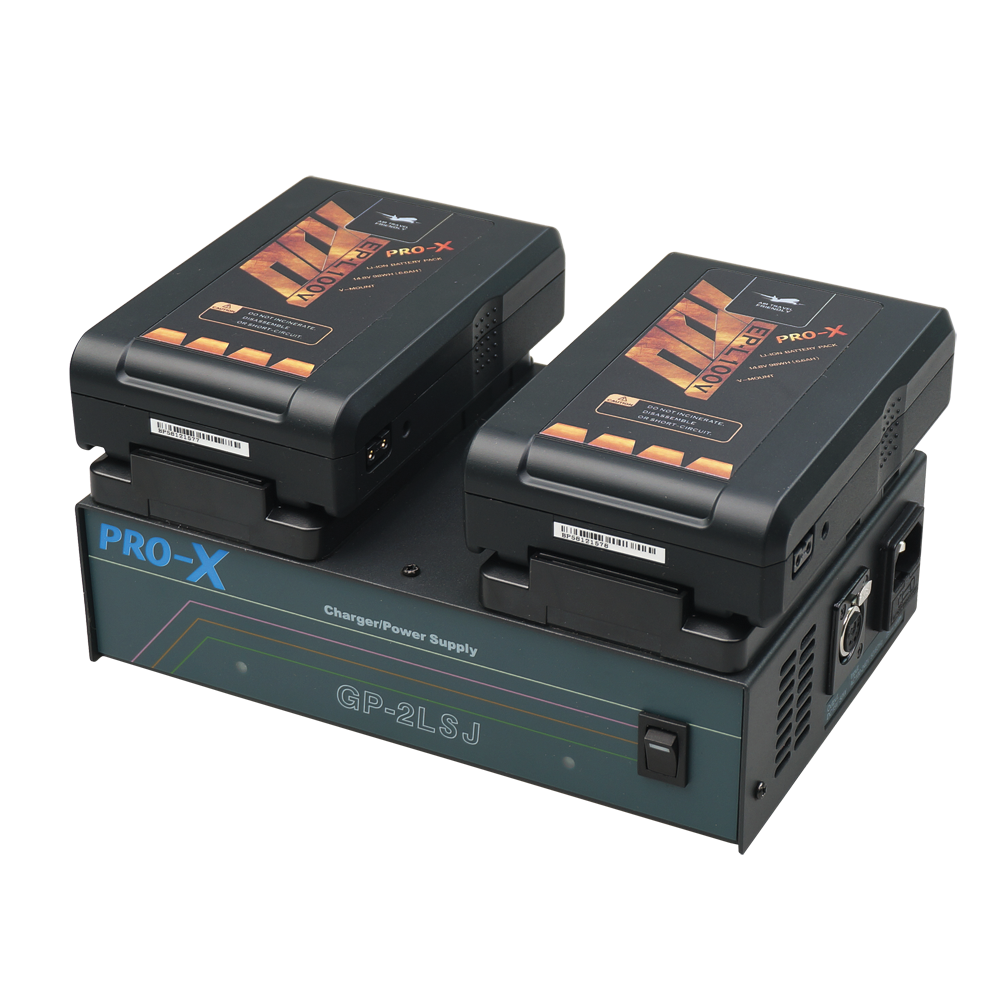

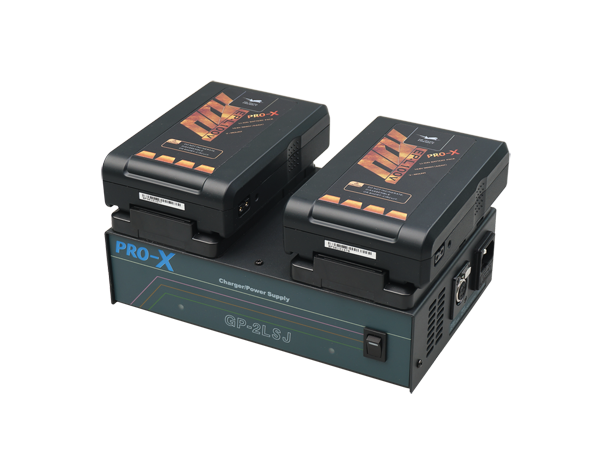

GP-2LSJ / GP-2LAJ
Compact enough to fit into a camera bag yet versatile addressing all PRO-X batteries simultianeously.
Trickle charge maintenance program ensures the batteries are always at maximun capacity.
TC-2S/ TC-2A
Portable 2-channel Battery Charger and Power Supply
A complete charging system with a convenient compact design
