Travel Charger
Travel Charger for Lithium Ion Battery
DC-2LJ / SP-2LJ / GP-LS / GP-LA
Charge Positions: 1/2
| Model |
Charge
Positions
|
Input
Voltage (V)
|
Output
Voltage (V)
| Current (A) | Mount Type |
Power Supply
Output (W)
| Size (inch) | Weight (kg) |
| DC-2LJ | 2 | DC 9-28 | DC 16.8 | 1.5/3.0 | P-Tap | — | 2.2 x 4.8 x 0.8 | 0.15 |
| SP-2LJ |
AC 90-240
50/60Hz
| DC 14.8 |
1.0 (1battery)
2.0 (2battery)
| P-Tap | — | 5.3 x 2.5 x 1.3 | 0.4 | |
| GP-LS | 1 | 2.0 | V Type |
90
60 (While Charging)
| 6.5 x 4.5 x 2.3 | 0.9 | ||
| GP-LA | 3-Stud |
GP-LA
PRO-X offers GP-LA (3-Stud interface) with the same features as GP-LS.

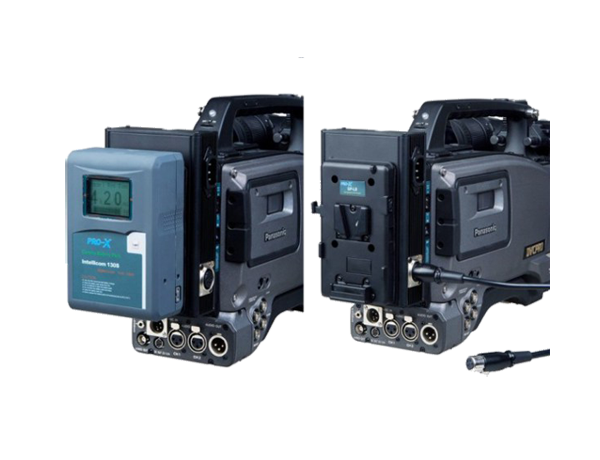

3-Stud interface can be installed on the back of the compatible camera directly as a power supply; it also doubles as a charger charging PRO-X 3-Stud Mount Li-ion batteries.
GP-LS
Single position charger includes a 90w 12vdc Camera Power Supply.
Max DC Output: 90w, 60w(while charging) Combines all the features of a single position charger with the ability to act as an on-camera power supply simultaneously.
When a battery is mounted, the GP-LS offers continuous power even if AC is interrupted.
Includes LED charge indication and a built -in 4P XLR output.
GP-LS can charge MOST V-Type batteries of other manufacturers.

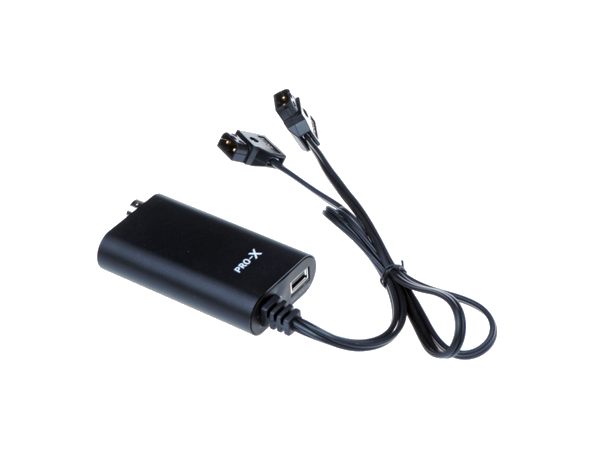

SP-2LJ
An economical solution to full featured charging, the SP-2LJ charger will safely charge two PRO-X batteries via P-Tap port on the battery.
Its compact design and LED charge indication makes it the perfect solution to those on a budget.
DC-2LJ
DC-2LJ is designed to charger the battery in the place where there is only DC power supply. It supports multiform DC input like cigarette lighter, solar panel etc.
DC-2LJ uses GX16-X port which can support various DC input connector matching with various adapter cables.(Cigarette) lighter,ø3,ø2.5,PPT plug etc)
